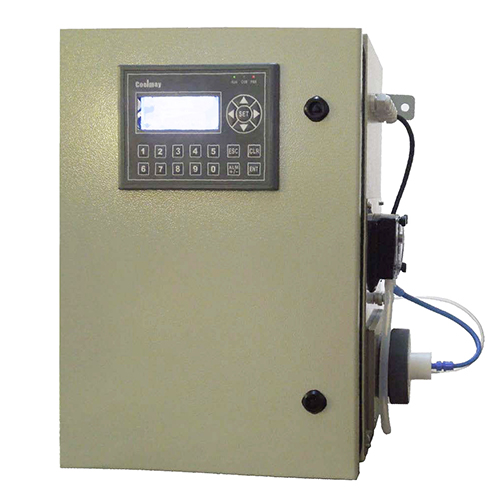

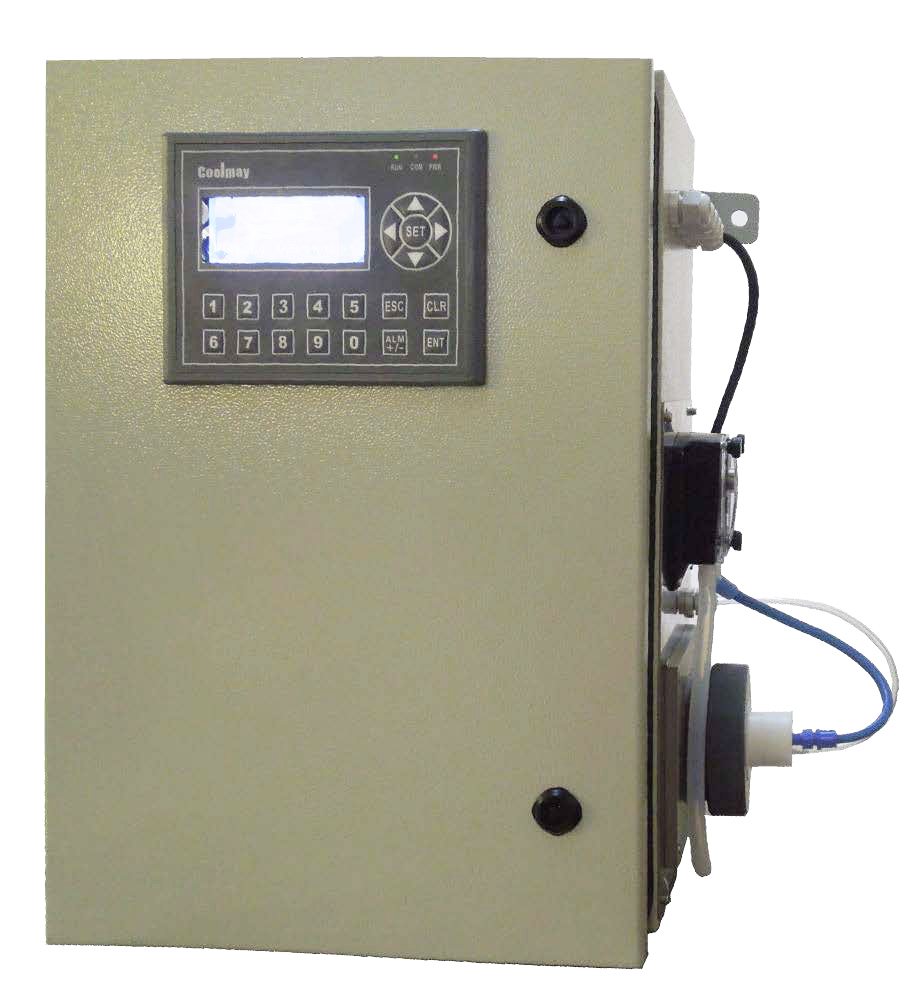

CZGL-15 on-line self cleaning filter is used with KLD on-line analyzer. The Filter startup is controlled by the analyzer and the rinsing circle & the filtration time are controlled by the controller integrated into the PLC.
Features
Continuous or interval filtration treatment applies to all the analyzer of KLD.
Filtration unit is controlled by built-in PLC and the analyzer.
The amount of filtration water is sufficient for the analyzer.
The sample after filtration does not contain solid particles or suspended solids.
Backwashing the filtration system with compressed air ensures high cleaning efficiency and low maintenance.
Sample delivered by peristaltic pump, stable flow.
AISI304 stainless steel exterior, suitable for severe environment.
External pump can be driven by the filteration unit.
Operating principle
When KLD on-line analyzer is started, it drives the relay to send signal to PLC of filteration unit.The unit begins to filter sample according to the cycles setup in the PLC and meanwhile the timer starts to count. PLC is used for activating the external sampling pump, the air compressor and the peristaltic pump and the solenoid valve for self cleaning. It completes the sampling according to the time programmed.
Specifications
| Filteration | Water volume | 60L/h |
| Water sample delivery | Quality | Without solid particles or suspended solids |
| Power | Peristaltic pump | |
| Sample pressure | 0.3bar | |
| Max flow | 500L/h( max pressure 1bar ) | |
| Self cleaning pressure | 0.6bar/ max pressure 1.2 bar | |
| Electric | Voltage | AC 220V±10% |
| Power | 24W | |
| Protection | IP65 | |
| Environment requirement | Temperature | 5 ~ 50°C |
| Humidity | 4 ~ 95% without condensation | |
| Material | Cabinet | AISI304+spray |
| Filter | AISI316 | |
| Hydraulic connection | PVC | |
| Dimension | 500×400×200mm(H×W×D) | |
| Weight | 10kg | |
