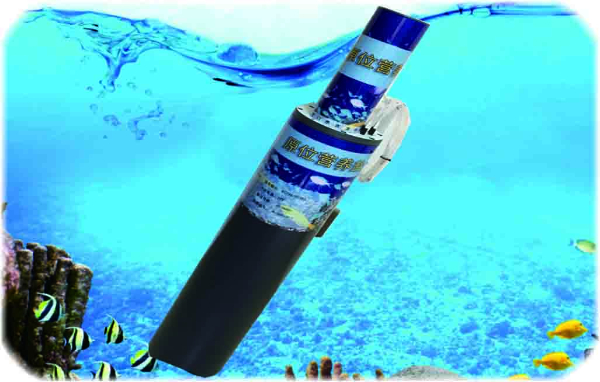

KLD-C Probe is an on-line buoy-type multiparametric water quality analyzer for measuring the nutrients in surface water and seawater. It can measure NH3-N, PO4-P, TP, NO3-N, NO2-N, TN and other parameters. One instrument can automatic measure up to four parameters. The analyzer is installed and fixed by small self-powered buoy. It can automatic record and store measured data. A portable control box is used to inquire and manage the data.
KLD-C Probe is specially designed & fairly suitable for buoy integration. The submersible design is easy for the analyzer to be placed in the preformed hole of the buoy,and simply fixed by chains and hooks.
The reagent bags placed at internal top cabinet can be directly filled with reagents without dismantling to avoid cross contamination between reagents. It is easy to clean and replace the reagents.
While uploading data, it can also carry out the wireless terminal operation. It is easy for on-site maintenance.
Features and Benefits
Unique colorimetric & fluorimetric measurements.
Unique loop-flow reactor, low reagent & calibration solution consumption and low maintenance. Expected reagent replace frequency is 45 days.
Internal top-positioned reagent bags can be directly filled without dismantling, simple operation.
Programmable reagent shortage alarm function.
Leakage alarm function for reagent cabinet and analytical cabinet.
RS232/RS485/MODBUS for data transmission.
Remote control and operation through software.
Titanium alloy-connector cable specially designed for seawater application. Under-water pull & plug possible. Gold-plated electric connector to reduce power consumption.
Extra reagent box can be configured for easy reagent replacement.
Maximum 100-meter under water position depth, suitable for In-situ application.
Optional Bluetooth connection available between analyzer & computer, wireless operation through software, easy for on-site maintenance.
Low voltage 12V DC supply with low power consumption. No need to convert to 220V. Gold-plated electric connector to reduce impedance.
Platform can show the remaining amount of reagent in the instrument. Easy for user to timely maintain.
Application
Basic data accumulated in offshore areas
Water quality monitoring and warning for offshore aquaculture
Surface water monitoring
Red tide warning
Specifications
Measuring parameter | Ammonia, Nitrite | Ammonia, Nitrite, Sulfide | Nitrate, Nitrite, Total Nitrogen | Nitrate, Nitrite, Total Phosphorous | Ammonia, Nitrate, Nitrite, Phosphat |
| Model No. | KLD-Pro-01 | KLD-Pro-02 | KLD-Pro-03 | KLD-Pro-04 | KLD-Pro-05 |
| Measuring Type | Manual or automatic with interval | ||||
Measuring Interval | Programmable; Reverse Control Available by RS232 | ||||
| Colorimeter | Colorimeter & fluorimeter | ||||
| Measuring Range | 0~0.1/0.5/2/5/10mg/L, customized on request | ||||
| Calibration Type | Manual or automatic with interval | ||||
| Detecting Limit | 2% | ||||
| Repeatability | 5% | ||||
| Zero Drift | 5%F.S | ||||
| Range Drift | 5%F.S | ||||
| Signal Output | Standard RS232/RS485 digital output | ||||
Sample and Waste Delivery | Pressure free | ||||
Reagent Temperature | 10-30°C | ||||
Reagent Replacement | 3~4 weeks (depending on the ambient temperature) | ||||
Ambient temperature | 5-40°C | ||||
| Protection | IP68 | ||||
| MTBF | ＞720h | ||||
Auto-operation time | 1.5 months (depending on measuring interval) | ||||
| Power supply | 12V DC, solar power supply (or AC 220V supply) | ||||
| Weight | 20kg | ||||
| Dimension | 250×700mm | 250×700mm | 250×700mm | 250×700mm | 250×700mm |
